Access Control with MTZ® Access

The core component of the access management is the software module MTZ® Access. It lets you exactly define and manage all access authorisations concerning rooms, areas and times – for each single employee, for access groups or both combined. Furthermore, MTZ® Access can be extended at any time by optional modules such as visitor management, hazard detection systems and building management. Customized access control: With our solutions a flexible adaptation to your requirements is no problem.

Our solutions for a reliable access control


Access Reader

For intercom systems, for outdoor use, contactless, with fingerprint, PIN code or with display: In our access control assortment we offer you access readers in numerous variants. Combine the hardware solution that best suits your business from our series.

previous arrownext arrow
LM3000 Access reader

Contactless reader technology with RS422 interface for connection to a universal control unit; with non-contact MIFARE reader in high quality glass design; Glass black; other colors on request; Installation in flush-mounted box; Power supply through universal control unit

LM3500 Access reader

Contactless reader technology with RS422 interface for connection to a universal control unit; with non-contact MIFARE reader in high quality glass design; Glass black; other colors on request; Installation in flush-mounted box; Power supply through universal control unit

LM600 Access reader

High-quality online offline readers with contactless MIFARE reader in Skyline Brilliance glass design; Glass standard: black; illuminated room number; other colors on request; Installation in flush-mounted box; LEDs for DND (Do not disturb) and MUR (Make up room); capacitive bell button

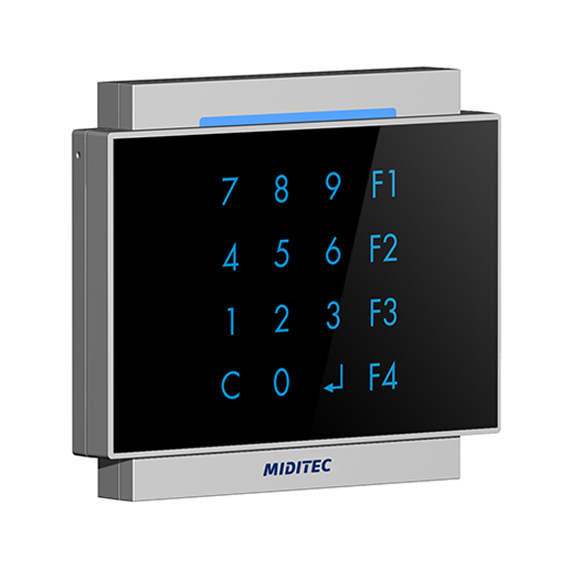

LM610 Access reader with pin code

Access reader with pin code and contactless reader technology with RS422 interface for connection to a universal control unit; Power supply through universal control unit


Functions : Access, pin code entry, arming / disarming of a hazard detection system

LM620 Access reader with pin code and display

Access reader with pin code and display with contactless reader technology with RS422 interface for connection to a universal control unit; Power supply through universal control panel; Full graphics 3.5 "TFT display


Functions: access, pin code input, arming / disarming hazard alarm system

LM660 Access reader with fingerprint

Access reader with fingerprint identification and pincode keyboard; MIFARE Classic / DESFire reader with RS485 interface for connection to a universal control panel; Power supply through universal control panel; Surface mounting


Functions: access, pin code input, arming / disarming of a hazard detection system

LM510S Access reader

Contactless reader technology with RS422 interface for connection to a universal control unit; Installation in Siedle housing; Standard: Siedle 611, silver; other colors on request; Power supply through universal control unit

LM400 Access reader

Standard Series
Access reader for various switch programs (Gira, Berker, Busch-Jaeger, Jung, ...); contactless reader technology with RS422 interface for connection to a universal control unit; Flush mounting; Power supply through universal control unit

previous arrow
next arrow
Slider

Hotel Access Reader

Access control customized for hotels: With our hotel series you equip all your rooms with reliable access readers. Whether for connection to a door controller or for Busch-Jaeger switch programmes, you will certainly find the appropriate variant for your hotel, of course with contactless MIFARE technology.

previous arrownext arrow

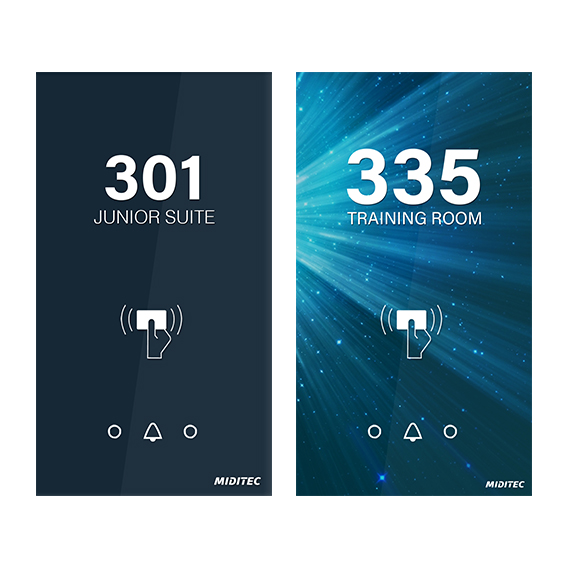

HR3000/HRC3000 Access reader

High-quality online offline readers with contactless MIFARE reader in Skyline Brilliance glass design; Glass standard: black; illuminated room number; other colors on request; Installation in flush-mounted box; LEDs for DND (Do not disturb) and MUR (Make up room); capacitive bell button

HR3500/HRC3500 Access reader

High-quality online offline readers with contactless MIFARE reader in glass design; Glass standard: black; other colors on request; Installation in flush-mounted box; LEDs for DND (Do Not Disturb), MUR (Make Up Room) and Check Minibar; capacitive bell button; RS485 interface (2-wire) for connection to a door controller; Power supply with door controller via external power supply

Corridor Panel

Small or large corridor panel with 1-2 room numbers for status display of DND and MUR; Glass black (other colors on request); illuminated room numbers; Installation in flush-mounted box; LEDs for DND (Do not disturb) and MUR (Make up room); capacitive bell button (optional); RS485 interface (2-wire) for connection to a door controller; Power supply via external power supply

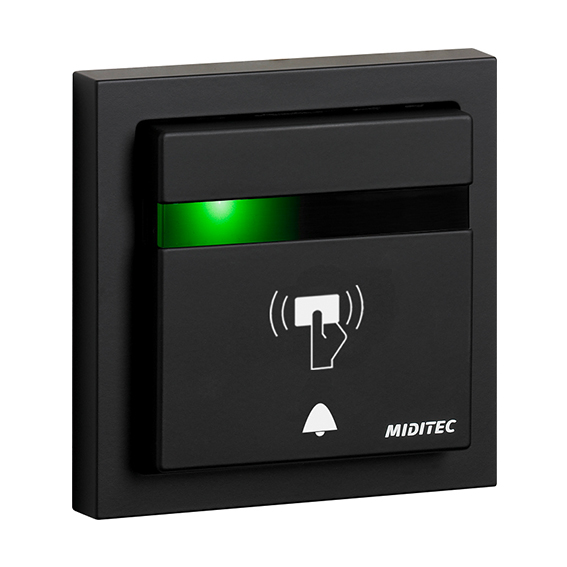

HRC420 BJE Access reader

Online offline reader with contactless MIFARE reader for Busch-Jaeger switch programs; Standard: future linear in studio white; other colors on request; Installation in flush-mounted box; Status indicator for DND (Do not disturb) and MUR (Make up room); Bell button; RS485 interface (2-wire) for connection to a door controller; Power supply with door controller via external power supply

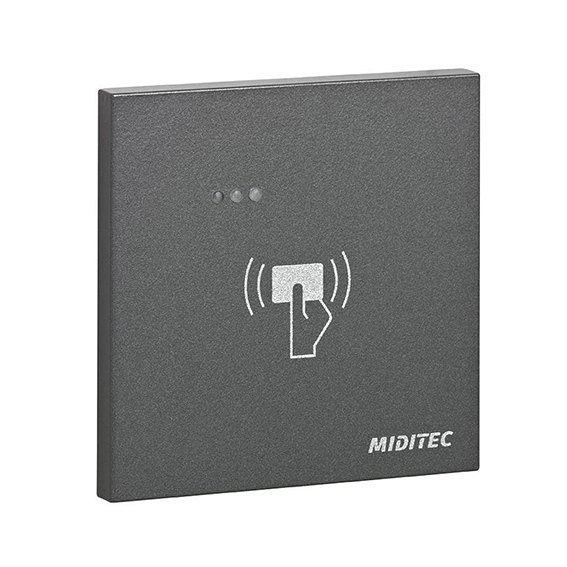

HRC500S Access reader

Online offline reader with contactless MIFARE reader; Installation in Siedle housing; Standard: Siedle 611, silver; other colors on request; RS485 interface (2-wire) for connection to a door controller; Power supply with door controller via external power supply

HR/HRC600K Access reader

The HR / HRC600K Skyline milock Hotel Reader can be optionally operated on the HAC5100 / 32 control panel for online functionality. The HRC600K offers the following functions: Door opening when reading a valid card (potential-free relay on the door controller and connected door opener); Ringing by pressing the capacitive bell button (potential-free relay on the door controller and connected gong).


Also available as HR / HRC600 reader without bell.

previous arrow
next arrow
Slider

Terminals

Choose from different terminal models and provide for reliable access control and a high-quality solution for time management (personnel time recording) and production data acquisition. A time recording terminal can smoothly be combined with other access management products.

previous arrownext arrow
LM620 Slave-Terminal

Contactless online access terminal with RS422 interface for connection to a universal control center, available as MIFARE Classic / DESFire or LEGIC prime / advant, can be used for access management and arming / disarming of a security alarm system

P700 Time terminal

Compact on- and off-line terminal for time management and production data acquisition with integrated RFID reader, available as MIFARE Classic or DESFire reader for connection to the server or PC via Ethernet, with power supply via PoE.

P6000 Time terminal

On- and offline terminal for time management and production data acquisition with integrated RFID reader, available as MIFARE Classic or DESFire reader for connection to the server or PC via Ethernet.

New: Easy door opening with the P6000 / P6050 without additional access software.

P6050 Time terminal with fingerprint

On- and offline terminal for time management and production data acquisition with integrated RFID reader with secure fingerprint identification, available as MIFARE Classic or DESFire reader for connection to server or PC via Ethernet.

New: Easy door opening with the P6000 / P6050 without additional access software.

P620 Slave-Terminal

Contactless online time & attendance terminal with RS422 interface for connection to a universal control center, available as MIFARE Classic / DESFire or LEGIC prime / advant, suitable for time management and / or access management

previous arrow
next arrow
Slider

Control Units

Whether universal control unit, elevator control unit, control unit for hotels or universal control unit for hazard detection systems: We offer you high-performance technology for an effective access control.

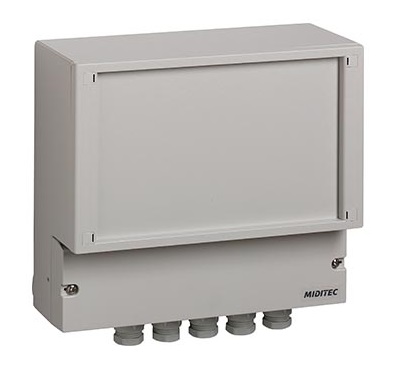

UZ5100/2 Universal Control Unit

Universal control unit with two RS422 interfaces for slave device connection; Connection to server or PC via Ethernet / RS485 interface; Service port for external service reader (software) for diagnosis / operation; Plastic housing; not available in steel or 19 "housing

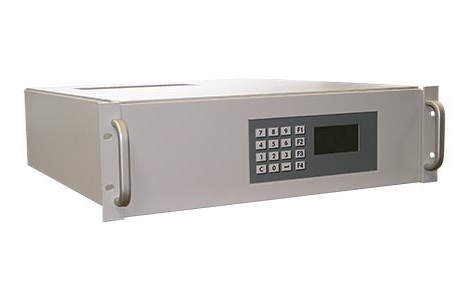

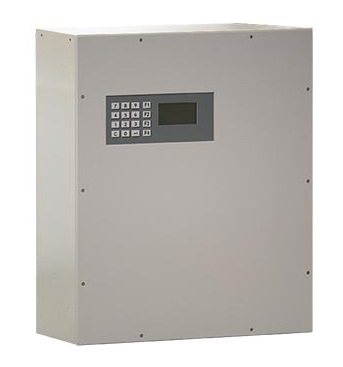

UZ6100/4 or /8 Universal Control Unit

Universal control unit with four or eight RS422 interfaces for slave device connection; Connection to server or PC via Ethernet / RS485 interface; The control panel is available in universal, universal with housing cover hinge or 19 "housing

UZ6100/GLT Universal Control Unit

Universal control unit for hazard alarm system GLT for connection to server or PC via Ethernet / RS485 interface; Connection of access devices and BMS components; the control panel is available in steel or 19 "housing, keyboard and LCD display operation

AZ6100/1 Elevator Universal Control Unit

Elevator universal control center with two RS422 interfaces for slave device connection; Connection to server or PC via Ethernet / RS485 interface; The control panel is available in universal, universal with cover or 19 "housing, connection of up to 2 readers for control of up to 2 elevator doors, control of a maximum of 8 floors via relays

HAC5100/32
for access and room automation

Control panel for access and room automation with two RS485 interfaces 2-wire for connection of up to 2 x 16 hotel readers (bus system); Connection to server or PC via Ethernet / RS485 interface; Plastic housing; Service port for external service reader (software) for diagnostics

previous arrow
next arrow
Slider

Fittings and lock cylinders

In our programme we offer a wide range of fittings and lock cylinders especially for demanding hotels on the basis of the contactless MIFARE technology. Integrated sensors detect whether or not the door is closed or if a battery change is required. By means of an integrated memory module the latest 1,500 bookings can be stored and analyzed if required. More than access control: This is what our systems accomplish.


Locking systems

Our locking systems make an easy and effective access control possible. Offline access management, MTZ® milock locking system or MTZ® milock wireless lock: Here you will find the appropriate solution.

previous arrownext arrow
Offline Access Management

With our intelligent offline access control, individual doors or secluded areas can be equipped with electronic access control, without the need of elaborate cable installation

MTZ® milock Locking System

The milock Locking System enables a simple offline access control based on the access control MTZ® Access. The MTZ® milock Locking System manages up to 65.535 locks and enables access profiles on the basis of weekly programmes, time zones and closing days. Likewise, lost cards can be blocked.

milock Wireless Lock

The electronical wireless lock for RFID readers enables door-opening via radio signal. The lock is operated by batteries inside. The battery life is over 2 years. Furthermore, there is an alarm message for the case of a prolonged interruption of the radio signal and a Man-In-The-Middle protection.

previous arrow
next arrow
Slider

Locking system for cabinet groups

With our special locking system solutions for cabinets and lockers access authorisations for cabinet and locker doors can be granted on a person-related basis. If a person is authorised for multiple cabinet doors, all authorised doors will open when a booking at the reader is made. Doors which a not closed correctly or break-ins are detected via a monitoring contact.


Access Control with MIDITEC: We can do even more...

As a specialist for hard- and software for access control, building security and time recording systems we offer you numerous high-quality products and system solutions which can individually be combined. Please, feel free to contact us, and we will develop together a customized overall concept for access control, room automation and more.
